High Speed and Precision 20W 30W Mini Portable Fiber Laser Engraving Machine for Metal Plastic Pen Gold Silver Jewelry

working accuracy : 0.001

graphic format supported : AI, PLT, DXF, DXP

laser type : Fiber Laser

condition : New

place of origin : China

weight (kg) : 25

key selling points : Easy to Operate

warranty : 2 years

mode of operation : Pulsed

configuration : gantry type

feature : Automated Loading

Product name : Lazer Marking Machine

Laser source : IPG Raycus Max JPT

Machine type : Mini Portable Laser Marker

Marking Speed : 0-7000mm/s

Laser wavelength : 1064 Nm

Cooling system : Air Colling

Price : CN¥2,874.64/sets

Contact Now

Only 20Kg 20W 30W Mini Portable Fiber Laser Marking Machine Laser Engraving Price For Metal Plastic Pen Gold Silver

Product Description

Features

1. Excellent light quality:

Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking. 2. Low usage cost: a. Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500w. It greatly saves the cost in power consumption. b. No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday. 3. Free maintenance & long service life: Using laser diode as the source of pump, full sealing light path design, its no-failure operation can up to 100 thousand hours. 4. Fast process speed: Its processing speed is 5-10 times faster than traditional laser marking machine.
High Speed and Precision 20W 30W Mini Portable Fiber Laser Engraving Machine for Metal Plastic Pen Gold Silver Jewelry

High Speed and Precision 20W 30W Mini Portable Fiber Laser Engraving Machine for Metal Plastic Pen Gold Silver Jewelry

*Specification*
Item	Value
Model	HLFM-D20 / 30 / 50 / 70 / 100
Power	20w / 30w / 50w / 70w / 100w
Laser Type	Fiber Laser
Laser Source Brand	MAX / RAYCUS / JPT MOPA Optional
Galvanometer	SINO-GALVO RC1001 Upgradeable
Marking Area	7070mm / 110110mm / 150150mm / 200200mm / 300*300mm Optional
Minimun Line Width	0.01mm Depends on the material
Minimum Character	0.2mm Depends on the material
Compatible with Lightburn	Yes
Control Software	BSL/JCZ
Language	Chinese, Korean, Japanese, German, French, Arabic, Spanish, Portuguese, Vietnamese, Farsi, Russian, Thai, etc.
Graphic Format Supported	PLT, DXF, AI, BMP, JPEG, etc.
System Requirements	WIN7 and above
Cooling Mode	Air Cooling
Voltage Requirements	110-240V 50-60Hz
Net Weight	20KG

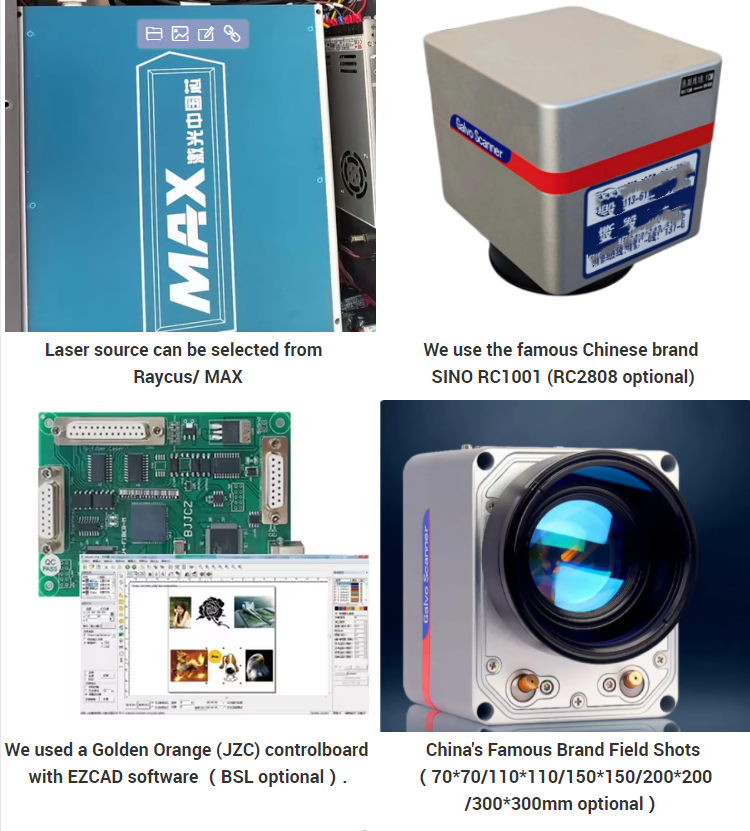

Component parts

Application
Application Industries:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Application Materials:Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
Complimentary Accessories
High Speed and Precision 20W 30W Mini Portable Fiber Laser Engraving Machine for Metal Plastic Pen Gold Silver Jewelry

Sample Display

High Speed and Precision 20W 30W Mini Portable Fiber Laser Engraving Machine for Metal Plastic Pen Gold Silver Jewelry Images
